FEULING PARTS - 7273ST - Camchest Kit - 487 - Center/Water Cooled - Race Series Short Travel Lifters - M8
The FEULING PARTS 7273ST is purpose-built hardware for Camchest Kit - 487 - Center/Water Cooled - Race Series Short Travel Lifters applications precision-manufactured for a correct fit and reliable performance. Sold as a complete kit.
Features

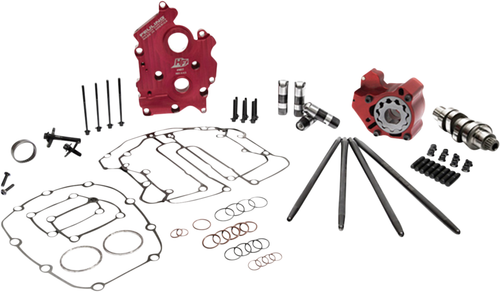

- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Sort Travel Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
- 487 Reaper Camshaft.
- Bolt-in
- Chain Drive
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- RPM range 2,250 - 6,100
- 38° overlap
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Race Series® Short Travel Lifters
- Short travel hydraulic roller lifters, standard OD (0.8420-0.8423)
- Designed with 0.115 of total travel
- One Piece Pushrod
- HP+ 0.165 wall, +0.040 longer
- Heavy duty 7/16" diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
- Race Series® Oil Pump
- Increase oil pressure, scavenge volume and engine oil flow
- 30% more pressure gear volume over stock
- 53% more scavenge gear volume over stock
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
- FEULING test results show a 50% reduction of engine sump oil level.
- High Flow Camplate
- Bolts into stock location
- Billet 7075 aluminum
- Made in the USA
- Feuling does not recommend tuning beyond stock emissions standards.
Specs
- Exhaust Close: 17.5°
- Product Name: Camchest Kit
- Type: Chain Drive
- Units: Kit
- Exhaust Open: 44°
- Intake Open: 20.5°
- Exhaust Lobe Centerline: 103.25°
- Exhaust Lift at TDC: 0.146"
- Grind: 487 Series
- Intake Duration: 237°
- Intake Lift at TDC: 0.180"
- Exhaust Duration: 241.5°
- Features: Short Travel Lifters
- Application: Water Cooled
- Exhaust Lift: 0.487"
- Intake Lift: 0.478"
- Intake Lobe Centerline: 98.5°
- Intake Close: 37°
- Model: Reaper
- Riding Style: Street
