Instrument Clusters
About Instrument Clusters
An instrument cluster groups several readouts into one unit, so replacing one is a bigger change than swapping a single gauge. Riders shop here when the original cluster has failed, when a custom bar or fairing change needs a different layout, or when they want a modern digital display on an older bike.

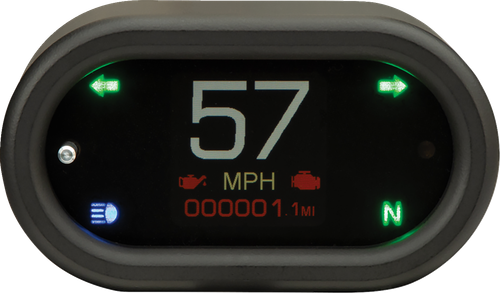

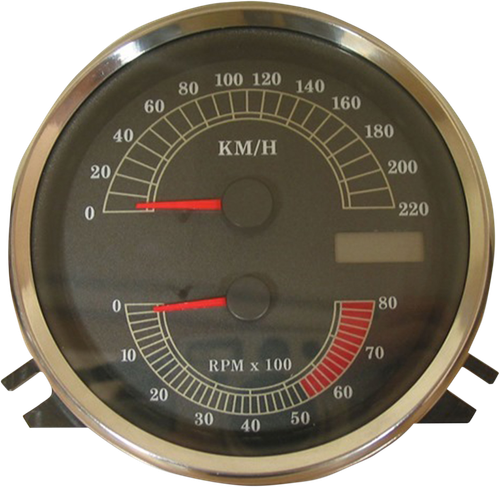

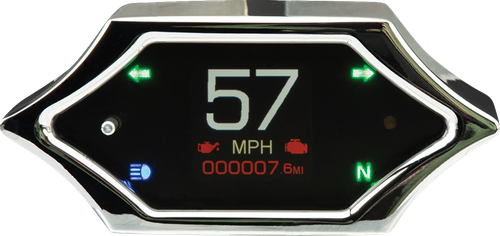

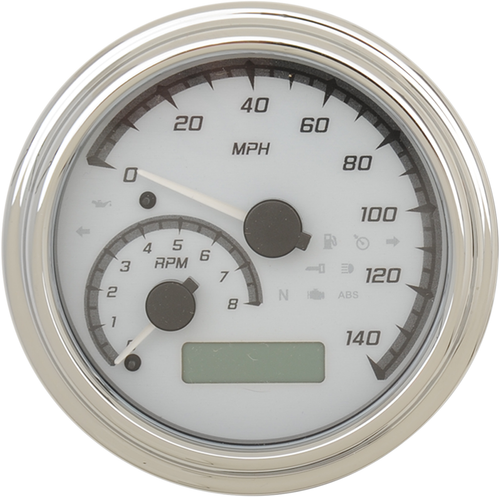

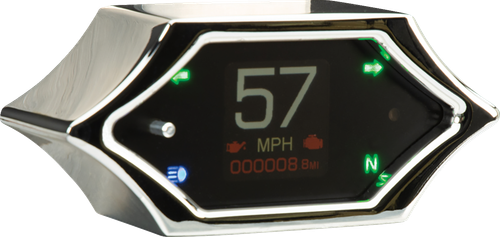

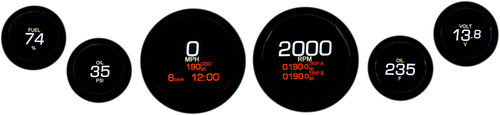

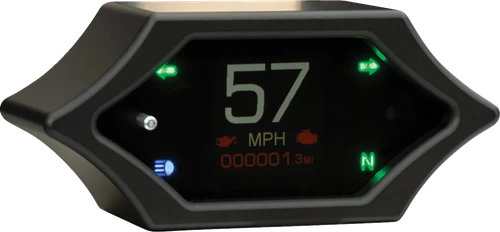

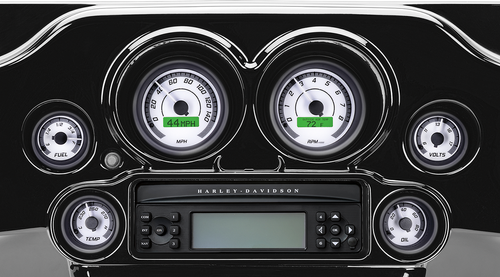

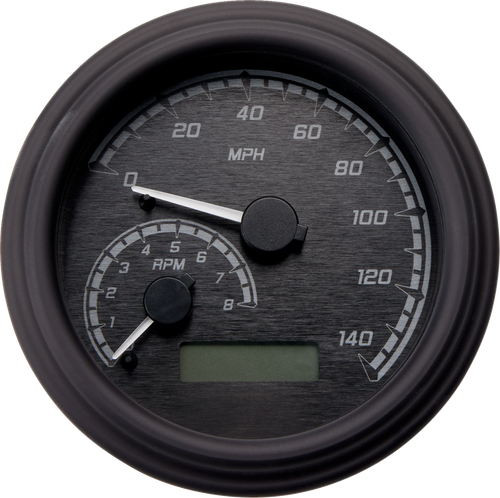

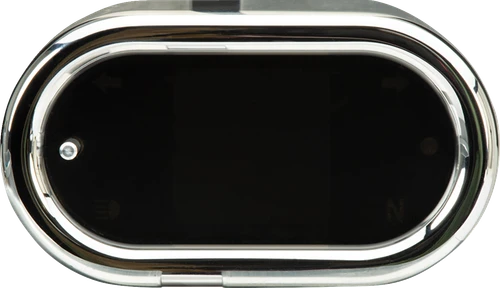

Many listings here are gauge kits for Harley-Davidson models, built for specific year ranges such as 2004 to 2013 and 2014 to 2023. Pick the display style first: analog, digital or a mix of both, with a chrome or black bezel and a face color. Count the gauges, since the samples include 4-gauge and 6-gauge kits. Then confirm that the kit matches your bike's model and year, because the connections and housing shape vary. Others are universal items, such as handlebar-mount speedometers with signals, a resettable hour meter and a speedometer and tachometer computer.
Brands in this category include Drag Specialties, Dakota Digital, Hardline, Trail Tech and Koso North America. A single dial is in Individual Gauges, mounts and adapters are in Instrument & Gauge Parts, and extension wiring is in Wiring Harnesses, Cables & Connectors. Pick your bike in the Ride Finder at the top of the page, and see why a part did not fit and how to avoid it before you order. The whole group is Instruments & Gauges.
FAQs on motorcycle instrument clusters
Will a new instrument cluster work with my stock sensors?
Some do and some need their own sensors or an interface. Check the listing for what the kit connects to, such as the bike's data bus, the speed sensor and the fuel level sender, and whether extra parts are required. Follow the maker's instructions for your model.
Are analog or digital instrument clusters better?
Analog dials are quick to read and look traditional. Digital displays can show more readouts in less space and be set up for different functions. Neither is better for every bike or rider, so choose the style that suits the machine and make sure it reads the signals your bike provides.
How do I know a cluster fits my model year?
Clusters are made for specific model and year ranges, and the listing states them. Check your model, year and trim against the fitment line, and use the Ride Finder at the top of the page to narrow the list to your bike.
Do I need to calibrate a new speedometer?
Electronic clusters often have to be set to the bike's tire size and drive ratio so the speed reads accurately. Follow the setup steps in the instructions, then compare the reading with GPS speed over a known stretch of road.
What is a bezel and does the finish matter?
The bezel is the ring around each dial. Finishes such as chrome and black are mostly a style choice, but the bezel and housing shape must fit the mount, so use the kit made for your bike. Match it to the other trim on the bike if appearance matters to you.
