FEULING PARTS - 1462 - Cam Kit - 487 - Chain Drive - Race Series Lifters - M8
The FEULING PARTS 1462 is purpose-built hardware for Cam Kit - 487 - Chain Drive - Race Series Lifters - M8 applications precision-manufactured for a correct fit and reliable performance. Sold as a complete kit.
Features
- 487 Reaper Chain Drive Camshaft, Cam Installation Kit and Race Series Lifters are included in this kit

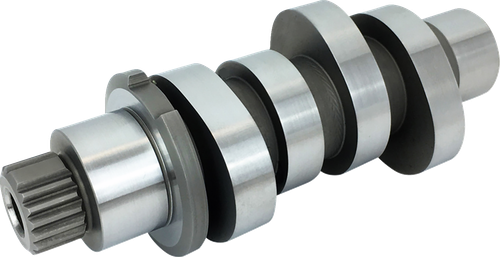

- 487 Reaper Camshaft
- Bolt in
- Chain Drive
- 38° overlap
- RPM range 2,250 - 6,1000
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio.
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Allows for installation of the factory one piece pushrods or optional Feuling® heavy duty HP+® 0.165 wall one piece pushrods
- Race Series lifters
- Hydraulic lifters have a full 0.200 of total travel
- Designed with a slower bleed down rate to handle heavy valve spring pressures
- Increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange
- Made in the USA
- Heavy duty one piece pushrods are highly recommended.
- Feuling® fastener kit is recommended to help prevent cylinder head cracking.
- A high flow exhaust system and air cleaner is highly recommended for optimal performance.
- High Lift valve springs are required on stock cylinder heads, Screamin Eagle cylinder heads have high lift valve springs but will need to be verified.
- Feuling® does not recommend tuning beyond stock emissions standards.
Specs
- Intake Lift: 0.478"
- Intake Lobe Centerline: 98.5°
- Riding Style: Street
- Exhaust Duration: 241.5°
- Exhaust Close: 17.5°
- Exhaust Lift: 0.487"
- Exhaust Open: 44°
- Intake Open: 20.5°
- Product Name: Camshaft Kit
- Type: Chain Drive
- Grind: 487 Series
- Intake Close: 37°
- Model: Reaper
- Units: Kit
- Exhaust Lobe Centerline: 103.25°
- Exhaust Lift at TDC: 0.146"
- Intake Duration: 237°
- Intake Lift at TDC: 0.180"
