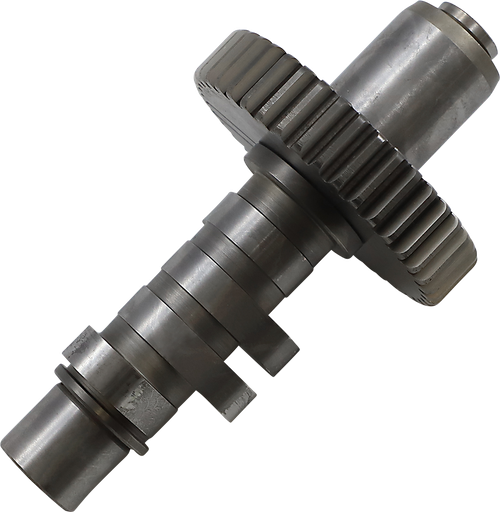

S&S CYCLE - 33-5108 - Camshaft - 640 Series - Evolution Big Twin '84-'99
The S&S CYCLE 33-5108 is a purpose-built camshaft designed and tested to perform correctly in the conditions and applications it was made for. For large displacement engines 110” and larger with 10.5:1 to 11.5:1 compression and smaller engines, 96”-107” with 11.0:1 to 12.0:1 compression. Less overlap and fast ramps build higher cylinder pressure, giving you a level of quality that holds up across the full service life of the component. Lower TDC lift makes installation easier. Designed for use with hydraulic tappets. Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.. The 33-5108 delivers exactly what riders need from a quality aftermarket component. Sold individually.
Features
- For large displacement engines 110” and larger with 10.5:1 to 11.5:1 compression and smaller engines, 96”-107” with 11.0:1 to 12.0:1 compression
- Less overlap and fast ramps build higher cylinder pressure
- Lower TDC lift makes installation easier
- Designed for use with hydraulic tappets
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
- Requires high-lift springs.
Specs
- Application: Intake
- Intake Close: 60°
- Intake Lift: 0.640”
- Units: Each
- Exhaust Duration: 265°
- Exhaust Lift at TDC: 0.192”
- Intake Lift at TDC: 0.222”
- Type: Gear
- Application: Exhaust
- Product Name: Camshaft
- Intake Lobe Centerline: 107.5°
- Intake Open: 25°
- Exhaust Lift: 0.640”
- Exhaust Lobe Centerline: 112.5”
- Exhaust Open: 65°
- Exhaust Close: 20°
- Grind: 640 Series
- Intake Duration: 265°
- Riding Style: Street
