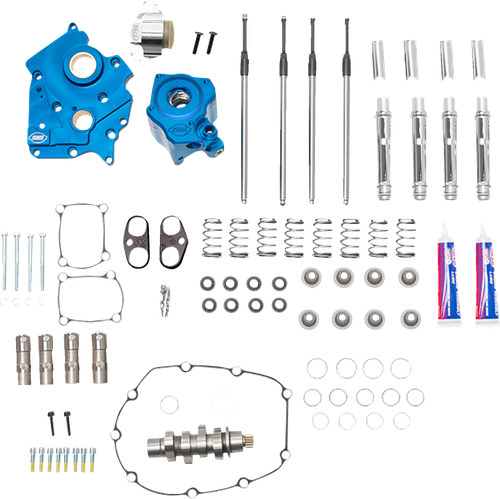

S&S CYCLE - 310-1433 - Cam Chest Kit with HPT560 Cam - '23-'26 Harley-Davidson CVO Street Glide, CVO Road Glide
For riders building out a '23-'26 Harley-Davidson M8 top end, S&S Cycle's 310-1433 cam chest kit bundles the HPT560 cam with Quickee adjustable pushrods, adjustable on the bike without removing the rocker boxes, and hand-assembled S&S precision tappets machined to exacting tolerances. Installation is a straightforward bolt-in job, and paired with S&S intake and exhaust the kit is rated for up to 24 more horsepower and 14 lb-ft of additional torque focused on low-end and mid-range pull.
Features
- Bolt-in for easy installation
- Boost performance up to 24 HP increase over stock when paired with S&S Cylce intake and exhaust systems
- Gain 14 lb-ft of torque over stock for superior low-end pull and mid-range grunt
- Quickee Adjustable Pushrods:
- Simple installation and on bike adjustment
- No need to remove rocker boxes
- S&S Precision Tappets:
- Hand-assembled to exacting tolerances
- Reduced valvetrain noise with high RPM performance
- Lift tappet cuffs ensure close tolerance for consitstent oil pressure
- Oil Pump and Cam Plate:
- Precision CNC machined from billet aluminum
- Independent scavenge sections for flywheel cavity and cam chest
- Removable passage plugs for easy servicing
- Dual debris screens and magnetic pickup
- +44% increase in oil supply flow and +58% increase in scavenging effeciency
- Adjustable pressure relief valve (tunable while installed)
- Includes S&S High Performance Cam Chain Tensioner
- Works with stock valvetrain.
Specs
- Exhaust Close: 7°
- Exhaust Duration: 225°
- Exhaust Lift: 0.555"
- Exhaust Lobe Centerline: 105°
- Intake Close: 42°
- Riding Style: Street
- Exhaust Lift at TDC: 0.067"
- Grind: 560 Series
- Intake Duration: 219°
- Intake Lift: 0.560"
- Units: Kit
- Exhaust Open: 39°
- Intake Lobe Centerline: 112°
- Product Name: Camchest Kit
- Features: Black Pushrod Tubes
- Intake Lift at TDC: 0.047"
- Intake Open: 1°
- Type: Chain Drive
