S&S CYCLE - 106-5302 - Camshaft - Easy Start - 625 Chain Drive- Twin Cam '99-'06 (except '06 Dyna)
For riders who put serious hours on their machine, the S&S CYCLE 106-5302 is a chain built with Japanese steel for consistent power transfer and long service life. Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance. Designed for 95” or larger engines with compression ratios between 10.0:1 and 10.75:1 with rpm 3000 rpm - 6000 rpm, ensuring strong pin retention. Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions, and made in the USA give this chain the internal toughness to resist constant flex and impact loads. High-lift springs and adjustable pushrods are required.. Whether running a practice bike, race machine, or trail bike, the 106-5302 delivers consistent performance. Sold as a complete kit.
Features
- Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
- Designed for 95” or larger engines with compression ratios between 10.0:1 and 10.75:1 with rpm 3000 rpm - 6000 rpm

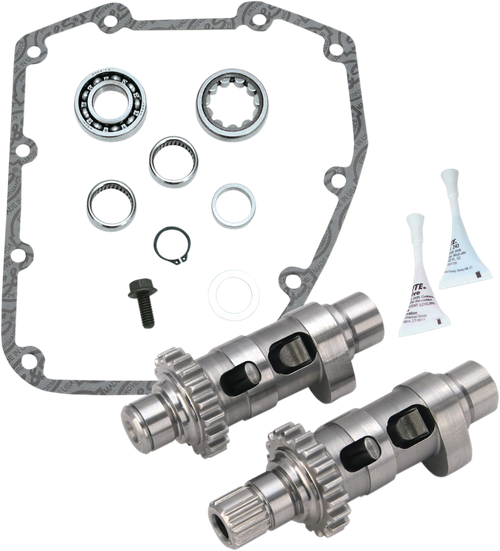

- Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
- Made in the USA
- High-lift springs and adjustable pushrods are required.
- Not for models with OEM compression releases.
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
Specs
- Application: Intake
- Grind: 625 Series
- Intake Duration: 255°
- Intake Lift: 0.625”
- Intake Open: 20°
- Exhaust Duration: 260°
- Exhaust Lobe Centerline: 110°
- Product Name: Camshaft Kit
- Exhaust Lift at TDC: 0.184”
- Type: Chain
- Application: Exhaust
- Exhaust Open: 60°
- Intake Lift at TDC: 0.189”
- Model: Easy Start
- Intake Lobe Centerline: 107.5°
- Exhaust Close: 20°
- Exhaust Lift: 0.625”
- Intake Close: 55°
- Riding Style: Street
- Units: Kit
