REGINA - 135QUAD/1009 - 520 Quad - Drive Chain - 98 Links
Chain wear is one of the most common causes of lost power and unplanned trail-side repairs, and the REGINA 135QUAD/1009 gives you a precision-built 520 chain designed to outlast the competition and keep your drivetrain running smooth. The ultimate ATV chain, developed to withstand the severe stresses of ATV riding, yet lightweight with maximum performance. QUAD chains feature the patented Z44 sealing rings, which greatly improve performance and wear life, making previous X-ring and Z-ring chains obsolete, ensuring strong pin retention. 50% reduction in friction compared to traditional O-rings, and constant lubrication from special high-temperature grease in the critical pin/bushing area provides long life give this chain the internal toughness to resist constant flex and impact loads. High-carbon alloy pins to minimize wear and increased roller thickness to prolong durability, translating directly into sharper throttle response. The z44-ring design adds protection at every link interface, significantly extending service intervals. Whether running a practice bike, race machine, or trail bike that sees hard use, the 135QUAD/1009 delivers consistent performance you can trust. Sold individually.
Features
- The ultimate ATV chain, developed to withstand the severe stresses of ATV riding, yet lightweight with maximum performance
- QUAD chains feature the patented Z44 sealing rings, which greatly improve performance and wear life, making previous X-ring and Z-ring chains obsolete
- 50% reduction in friction compared to traditional O-rings
- Constant lubrication from special high-temperature grease in the critical pin/bushing area provides long life
- High-carbon alloy pins to minimize wear and increased roller thickness to prolong durability
- Thicker outer plates and quad-riveting for greater tensile strength
- All parts are shot-peened for maximum fatigue resistance, and all chains are pre-loaded for superior performance and minimal adjustment
- Suitable for ATVs up to 900cc
- 8,093 ft./lbs. tensile strength
- Gold color
Specs
- Chain Size: 520
- Color/Finish: Gold
- Maximum Engine Displacement (Offroad): 500 cc
- Tensile Strength: 36.5 kN
- Model: Quad Series
- Tensile Strength: 8205 lb
- Product Name: Drive Chain
- Riding Style: ATV

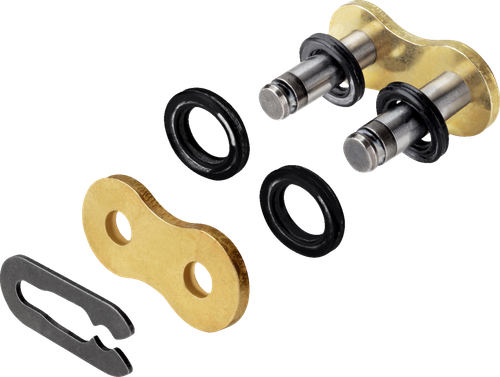

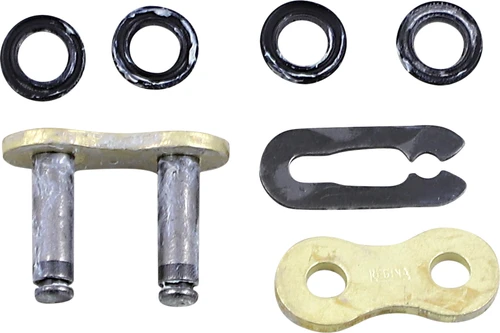

- Master Link Connector Type: Clip
- Number of Links: 98
- Chain Type: 520 QUAD
- Riding Style: UTV
- Seal Type: Z44-Ring
- Weight: 1,76 kg/100 Links
- Units: Each
