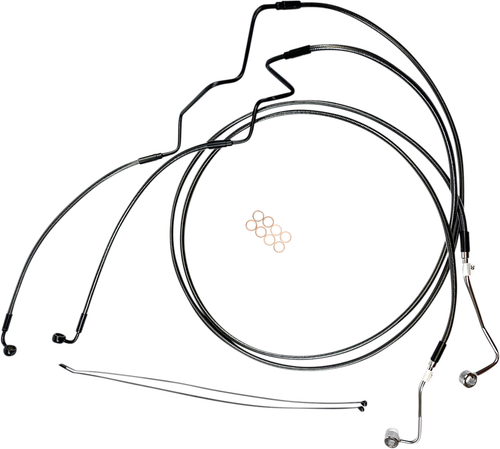

MAGNUM SHIELDING - AS47016 - Brake Line - Black Pearl

Q: Where can I find installation instructions for this product?

General installation notes are provided on the product page where available. For detailed step-by-step instructions, refer to the manufacturer's documentation included with the product, or use the product chat for questions about difficulty, required tools, or whether professional installation is recommended.

Description

Introducing the innovative Magnum Shielding AS47016 Brake Line in Black Pearl. This exceptional brake line offers a multitude of features. If you're replacing the stock lower brake line assembly on '18+ dual disc Softails, you won't need an adapter. The upper line effortlessly connects directly to the Magnum lower assembly using AN-3 fittings. Constructed with PTFE inner tubing, DuPont Kevlar aramid fiber, premium Signature Magnum braids, and an outer PVC jacket, these brake lines significantly reduce line expansion. Designed to meet Harley-Davidson ABS/non-ABS requirements for stock and alternate length brake lines, this enhanced construction guarantees compatibility. The brake kit includes a direct fit lower assembly, perfectly paired with alternative length upper lines. With AN-3 connections, installation is a breeze. Rest assured, these brake lines are proudly assembled in the U.S.A. As for the specs, the Brake Line from the Designer Series boasts a sleek black or Black Pearl color/finish. Made with durable stainless steel, it features a 10mm 35? Banjo Fitting for the master cylinder banjo. Specifically crafted for dual-disc systems with ABS, this brake line mounts effortlessly in the front, lower position. Sold as a kit, this brake line is perfect for street riding enthusiasts.

Features

If replacing the stock lower brake line assembly on '18+ dual disc Softails, an adapter is NOT needed. Using AN-3 fittings, the upper line connects directly to the Magnum lower assembly

Brake lines are constructed with PTFE inner tubing, DuPont Kevlar aramid fiber, premium Signature Magnum braids and an outer PVC jacket to greatly reduce line expansion

Manufactured with an enhanced construction designed to be compatible with Harley-Davidson ABS/non-ABS requirements for stock and alternate length brake lines

Brake kit consists of a direct fit lower assembly used in conjunction with alternative length upper lines

AN-3 connections make for easy installations

Assembled in the U.S.A.

Specs

Product Name: Brake Line

Type: Standard

Model: Designer Series

Color/Finish: Black, Black Pearl

Material: Stainless Steel

Master Cylinder Banjo: 10 mm 35? Banjo Fitting

Disc: Dual

For Braking System: with ABS

Mounting Position: Front, Lower

Units: Kit

Riding Style: Street
