MAGNUM SHIELDING - 47125 - Designer Series Braided Non-ABS Front Brake Line - '09-'19 Harley-Davidson Street Glide Trike, Tri Glide Ultra, Freewheeler

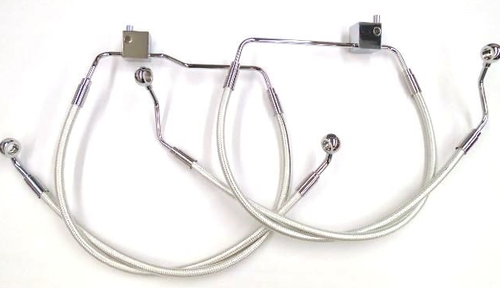

The 47125 braided front brake line from Magnum Shielding covers '09-'19 Harley-Davidson models with a two-piece, direct-fit design. All-brazed manifold construction avoids leaks and misaligned threaded connections for a cleaner look at the caliper, and the inner PTFE tubing's aramid braid resists expansion for a firmer lever feel. AN-3 connections simplify installation, and if the bars have been changed, the upper-only alternate-length option accommodates the new routing — length is set by measuring from the lower triple tree to the master cylinder. It's made in the U.S.A.
Features
- Brake lines utilize a superior two-piece design consisting of a direct fit lower assembly used in conjunction with alternative length upper lines
- All brazed manifold construction eliminates leaks, alignment problems, and unattractive threaded connections for a sleek appearance
- Inner PTFE tubing braided with aramid reinforcement provides the ultimate in high performance by greatly reducing line expansion
- AN-3 connections for easy installations
- Made in the U.S.A.
- Alternative fitments: Due to handlebar changes, fitment options are accommodated with the upper line only. You may prefer to use a different length or banjo angle based your specific routing.
- Upper line length is determined by measuring the routing path from the top of the lower triple tree to the master cylinder. The upper and lower connection is made at this point.
- Non-stock applications require taking a measurement for the upper brake line length and banjo angle to ensure correct fitment.
- Non-ABS Models - one upper and lower kit is required - two kits per bike.
Specs
- Color/Finish: Black
- Model: Designer Series
- Units: Each
- Mounting Position: Upper
- For Braking System: without ABS
- Color/Finish: Black Pearl
- Riding Style: Street
- Length: 25"
- Mounting Position: Front
- Disc: Dual
- Product Name: Brake Line
- Master Cylinder Banjo: 10 mm 35° Banjo Fitting
- Material: Stainless Steel
- Type: Standard
