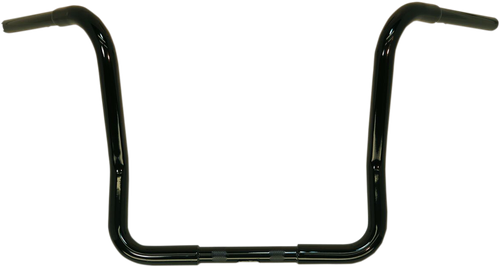

MAGNUM SHIELDING - 3HB-0212 - 1-1/4" Caliber Handlebar — Ape Hanger/Bagger - '96-'22 Harley-Davidson Screamin Eagle Ultra Classic Electra Glide

This bagger-width version of Magnum Shielding's Caliber Handlebar carries the same machined control mounts and burr-free, laser-cut wiring passages as the standard bar but stretches the center section to 12" span for bagger fairings, holding 12" of rise in chrome with CNC mandrel bending for accurate fitment. E-Z pull-thru sleeving comes preloaded to simplify the internal harness pull, and it still works with standard controls, hydraulic clutch included. Assembled in the USA for '96-'22 Harley-Davidsons.

Features

• Manufactured with high quality construction, including machined control mounts (not swaged) and laser-cut, burr-free holes and slots for internal wiring and electronic throttle control
• All handlebars are 1-1/4" diameter with 1" clamping area, 3-1/2" on center knurling, and work with standard controls, including hydraulic clutch
• All handlebars are CNC mandrel bent for an accurate fit and incorporate comfortable wrist angles for riding comfort
• All caliber handlebars are pre-loaded with E-Z pull-thru sleeving to make wiring installations a easier
• Assembled in the USA
• Not for use with stock risers and handlebar clamp/gauge mount clamp on 883C/1200C models.

Specs

• Features: Accepts Heated Grips
• Type/Bend: Ape Hanger
• Units: Each
• Width: 34-3/4"
• Finish: Chrome
• Material: Steel
• Center Width: 12"
• Features: Knurled Center
• Controls Diameter: 1"
• Height: 12"
• Base Color: Silver
• Clamping Diameter: 1"
• Features: For Hydraulic Clutch
• Features: Notched for Throttle-By-Wire
• Handlebar Diameter: 1-1/4"
• Pullback/Sweep: 11-1/2"
• Type/Bend: Bagger
• Color/Finish: Chrome
• End Rise: 11-1/4"
• Product Name: Handlebar
• Riding Style: Street
• Rise: 12-1/2"
