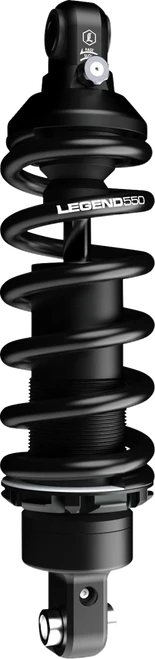

LEGEND SUSPENSION - 9310-0005 - Revo-A Mono Softail Coil Suspension - '25-'26 Harley-Davidson Softail Low Rider ST FXLRST, Softail Low Rider S FXLRS

Legend built the Revo-A Mono Softail Coil Suspension (9310-0005) around the '25-'26 Harley-Davidson M-8 Softail platform, giving riders knob-adjustable rebound damping for fast, precise, repeatable ride tuning. Preload adjusts for both initial rider setup and quick changes as weight or load shifts, touring-specific spring rates hold comfort while resisting bottoming, and low friction sleeve bearings at both mounts let the shock float rather than bind. It's built on a hard-anodized 46 mm billet aluminum monotube with a lightweight high-flow piston, offered in 12.5", 13", or 13.5" standard or heavy-duty lengths.

Features

• Revo-A coil designed specifically for M-8 Softail models
• Available in 12.5", 13", and 13.5", standard or heavy-duty applications
• Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads
• Legend's touring specific spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
• Features adjustable rebound damping that is specifically designed to make fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob
• Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding style
• Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind
• Hard anodized, 46 mm billet aluminum mono tube design utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike control
• Hard chromed shaft is 14% larger for increased strength
• Internal floating nitrogen piston ensures consistent damping performance
• Deflective disc valving self-adjusts to frequency and ensures controlled performance
• Legend's durable and low friction sealing system and sliding bearings provide improved performance and feel
• Available in Black Type III hard coat anodize
• Easy installation that utilizes the OEM mounting hardware
• Included preload wrench makes adjusting easy
• Sold as Mono Shock (1 shock only)
• Designed for optimum performance with the Legend Axeo front suspension
• Assembled by hand in Sturgis, SD USA
• P65 WARNING: Cancer and Reproductive Harm

Specs

• Product Name: Shock Absorber
• Color/Finish: Anodized
• Riding Style: Street
• Duty: Standard
• Material: Billet Aluminum
• Reservoir Location: Internal
• Type: Coilover Monotube
• Adjustment Type: Adjustable Rebound Damping
• Color/Finish: Black
• Model: Revo-A
• Mounting Position: Rear
• Units: Each
• Extended Length: 13.50"
