KOSO NORTH AMERICA - BA080020 - D2 LCD Multifunction Meter - '11-'24 Harley-Davidson Heritage Softail Classic, Sportster 1200 Custom, Forty-Eight Special

This plug-and-play meter for '11-'24 Harley-Davidson models mounts in the cutout below the handlebar clamp and puts an 8-color changeable LCD combined speedometer/tachometer front and center, complete with a programmable shift light and gear indicator. Engine temperature, battery voltage, and tire pressure are all monitored through the CANBUS-connected harness, giving riders a genuine factory-level instrument upgrade.

Features

• High quality plug & play meter that is equipped with an 8-color changeable LCD display

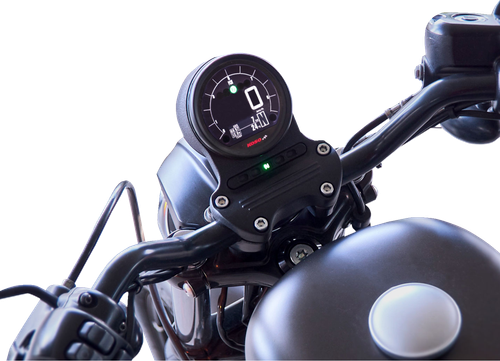

• Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)
• Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator
• Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike
• Plugs directly into the stock harness and works directly with CANBUS system
• Display range: 0-124 mph
• Effective temperature range: -4°F-185°F (-20°C-85°C)
• 12VDC battery voltage
• Measures 3-7/16” L x 1-1/16” W x 2-5/8” H
• XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.

Specs

• Calibration: 0 mph - 124 mph
• Face Color: Black
• Housing Color: Black
• Riding Style: Street
• Units: Kit
• Length: 3-7/16"
• Product Name: Gauge
• Type: Multi-Function Speedometer
• Depth: 2-5/8"
• Model: D2
• Width: 1-1/16"
