FEULING PARTS - 7196 - Oil Pump with Cam Plate - HP+ - Oil Cooled - M8
Don't settle for stock timing in your M8 performance build the FEULING PARTS 7196 delivers the cam profile you need. From the HP+® series, this cam is designed to drop into the factory valve train stack-up with minimal disruption to the surrounding components. Increase oil pressure, oil volume, engine oil flow and return oil scavenging. Quieter and smoother engine operation. Made in the U.S.A. Sold as a complete kit.
Features
- Increase oil pressure, oil volume, engine oil flow and return oil scavenging
- Quieter and smoother engine operation
- Engine temperatures run 15°-25° cooler
- Oil temperatures run 15°-30° cooler
- 10-30 lbs more psi of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Test results show 2 horsepower gain and 2 ft/lbs of torque gain to the rear wheel on M-Eight

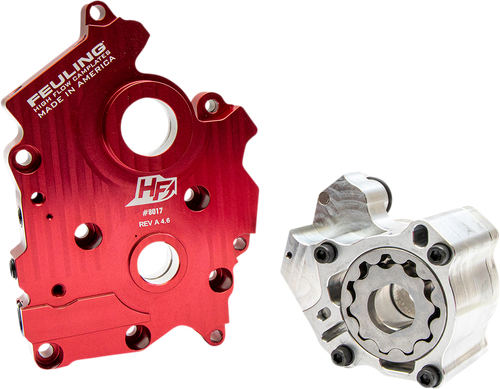

- Includes a billet 6061 aluminum high-volume oil pump and FEULING® High Flow billet camplate made from 7075 aluminum; which is 50% harder and stronger than the factory or FEULING® OE+ camplates
- Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
- Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 30 psi with full pop-off at 55-60 psi
- Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
- FEULING® oil pump and camplate combination eliminates common pressure and scavenge issues associated with the factory oiling systems
- FEULING® M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
- Made in the USA
- FEULING® test results show as much as 50% reduction of engine sump oil level.
- Optional Camplate/oil pump fastener kit PART #2401-0993 available separately.
- M-Eight oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.
Specs
- Color/Finish: Red
- Units: Kit
- Features: Oil Cooled
- Model: HP+®
- Style: Chain Drive
- Material: 6061 Billet Aluminum
- Style: Gear Drive
- Type: Oil
- Product Name: Pump Kit
- Riding Style: Street
